Engineering Services
Overview
Kinney Industries’ strength is our ability to provide full product support from concept through production. Software and hardware development combined with mechanical and industrial design expertise positions us to translate customers’ requirements into reliable cost effective products.
- Signal
- Power
- RF
- PCB Design
Solid Edge Tools
- Drawings (TDPs)
- Specifications
Production Testing Capabilities:
- Cirrus CH2
-
- Tests up to 800 points, 1500 VDC, 1070 VAC, 2-wire or 4-wire, Insulation Resistance and Dielectric Withstand Testing.
-
- Copper Mountain VNA (S5065)
-
- 9kHz-8.5GHz
- Linear frequency, log frequency, segment, power sweep
- 130dB typ. (10 Hz IF BW)
- 70us measurement speed
- Up to 200,001 measurement points per sweep
-
Test Specs
- MIL-STD-810
- MIL-STD-461
- UL1640
- Custom Requirements
Rapid Prototyping
Previous image
Next image
Engineering Projects
Previous image
Next image

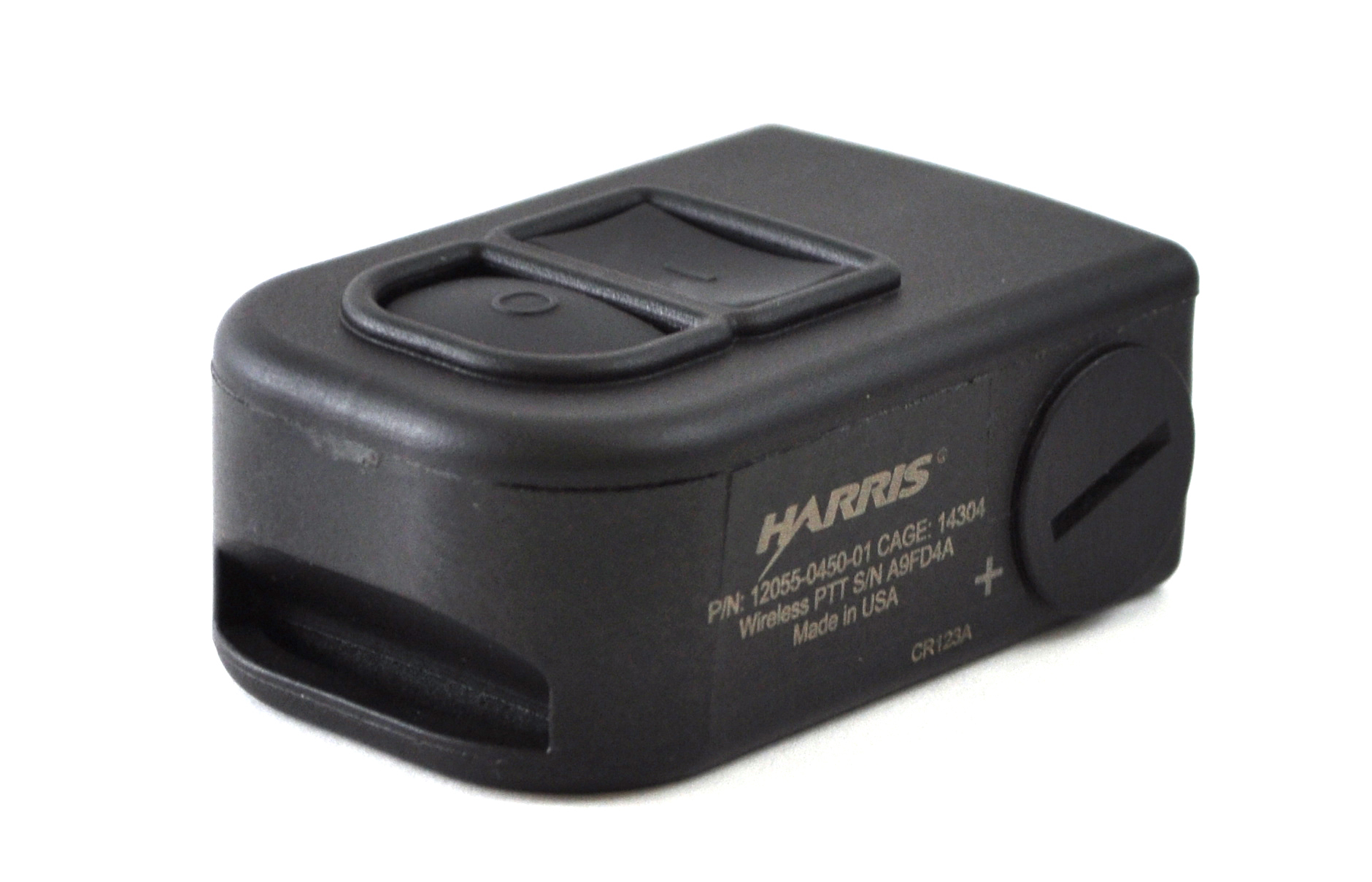

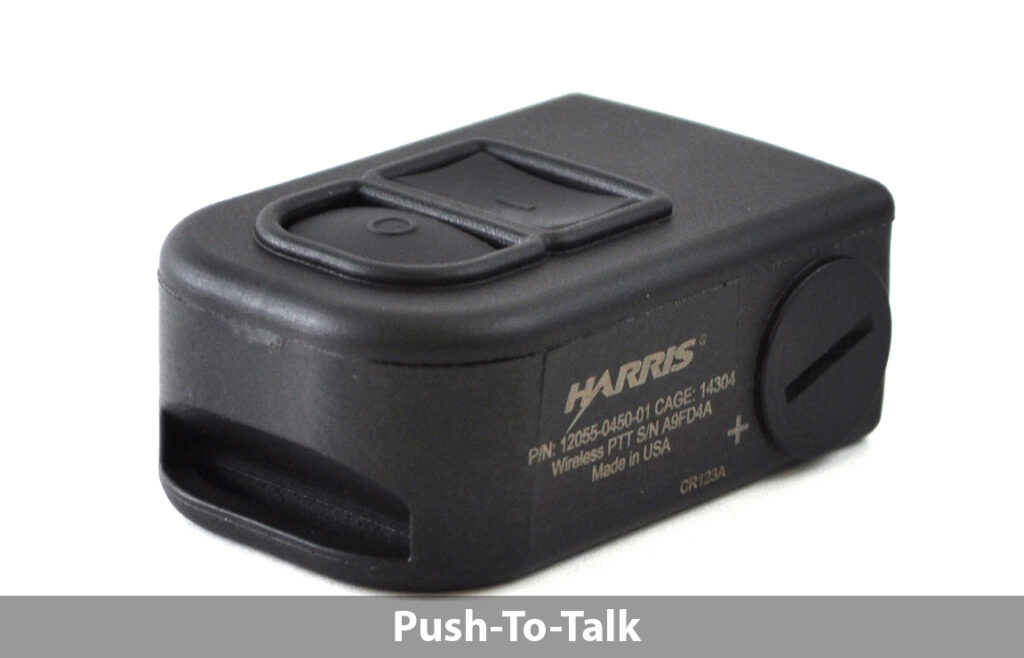

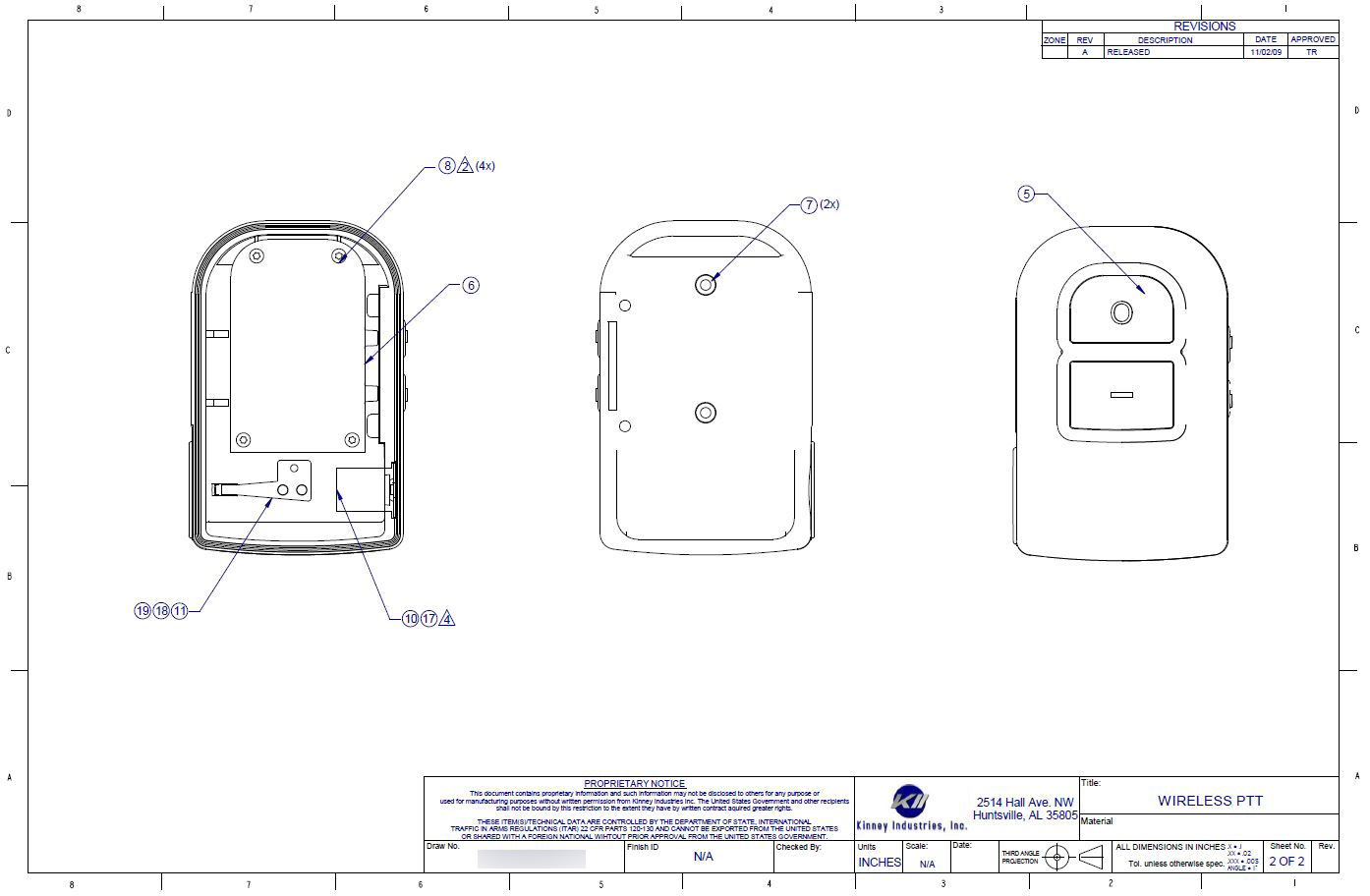

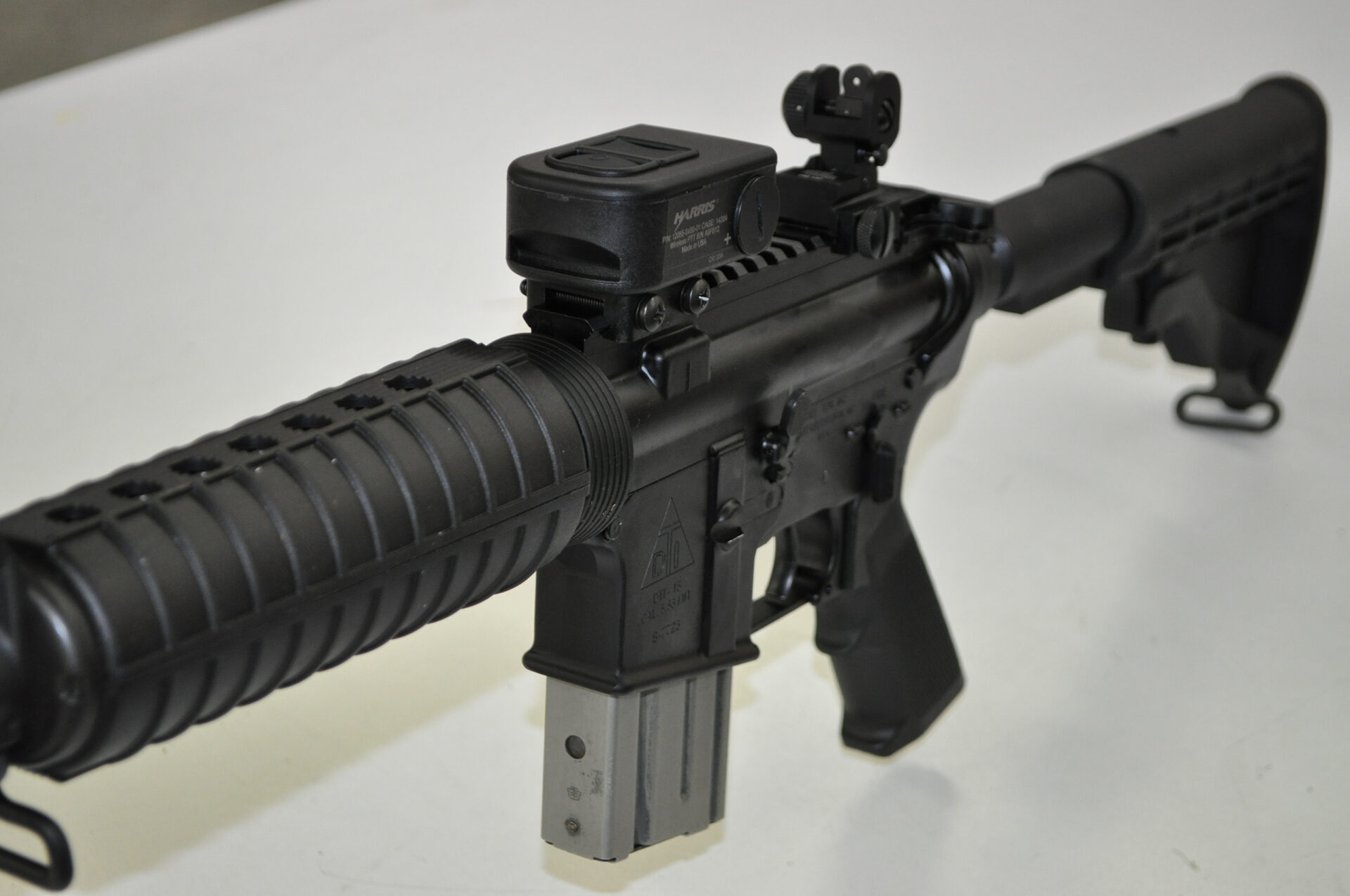

Push-To-Talk
Highlights
- Wireless Transceiver
- Rigorous Environmental Requirements
- Plastic Design and Manufacturing
- Stringent Ergonomic Requirements

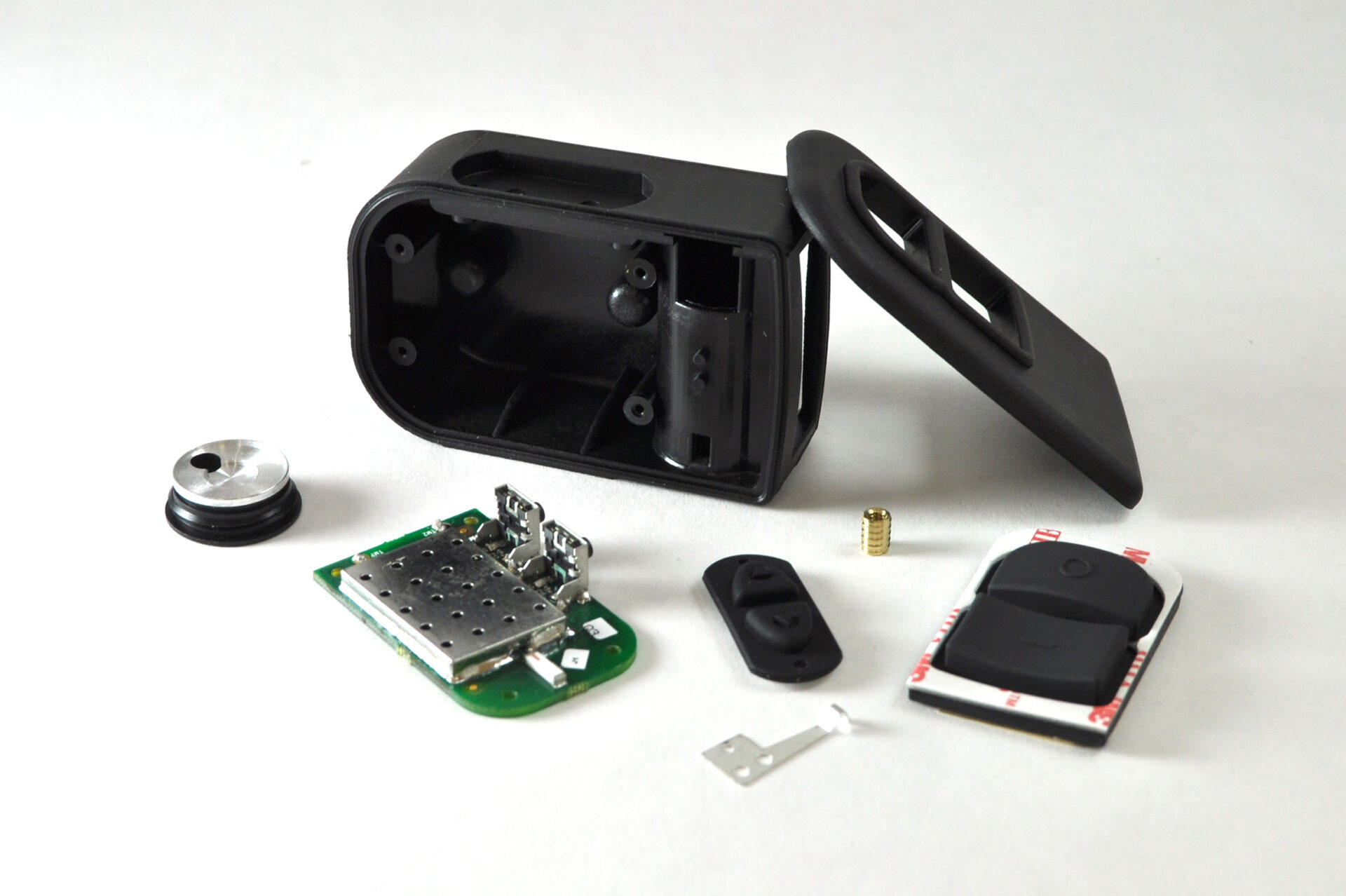

Wireless Push-To-Talk (PTT) system using ZIGBEE transceiver. Project includes mechanical, electrical, and software development. Designed and tested to meet the rigors of MIL-STD-810 and MIL-STD-461.

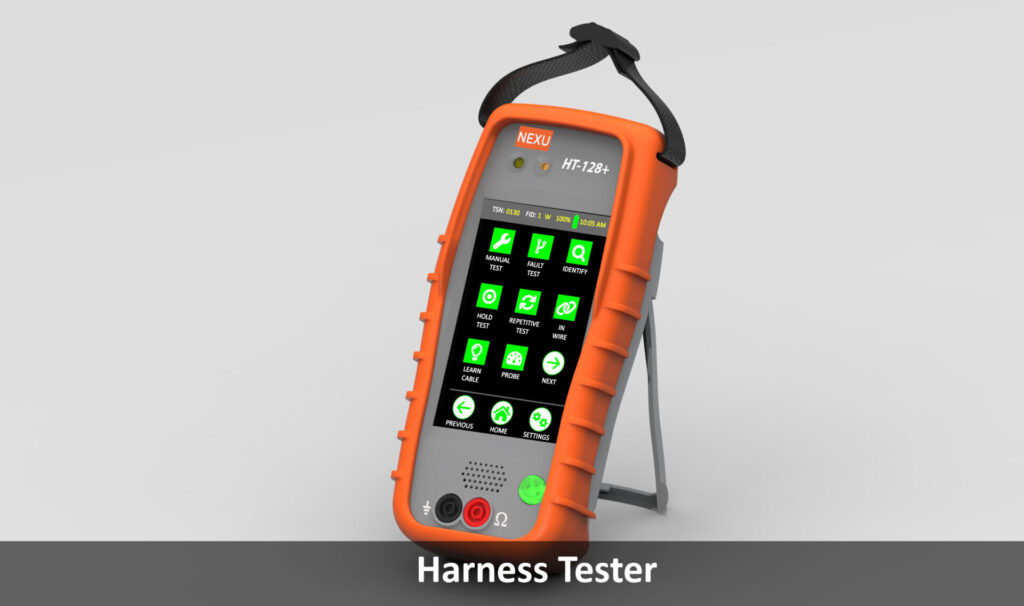

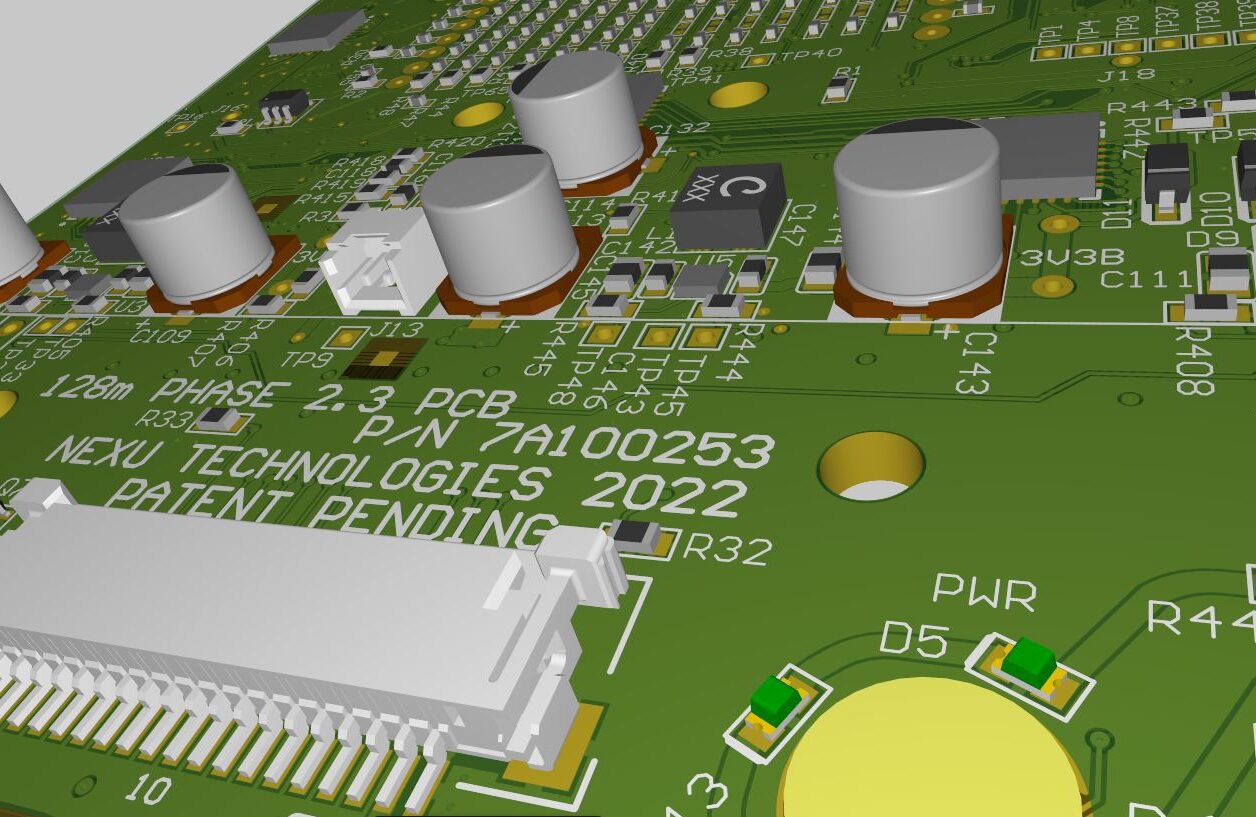

NEXU
HT-128+
Highlights
- Lightweight High Performance Tester
- Simple User Interface
- Evolving Feature Set
- Durable and Rugged Industrial Design

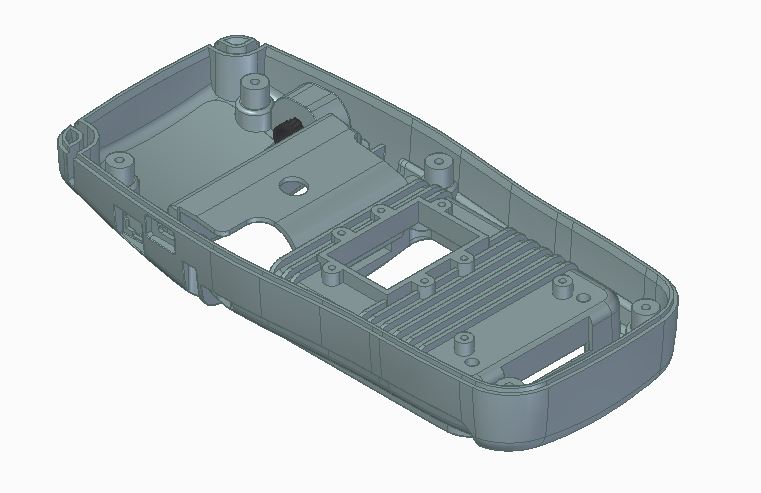

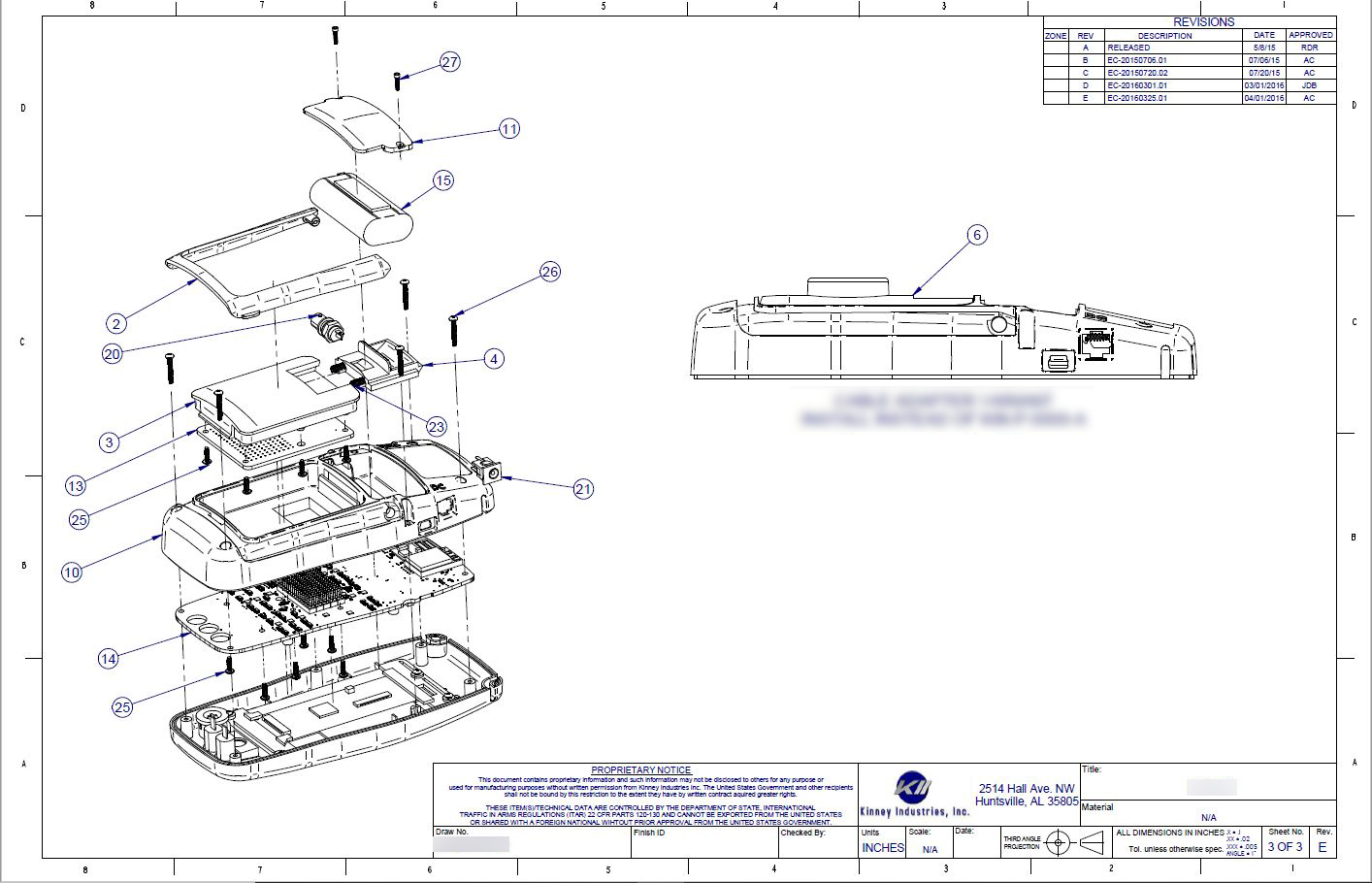

The HT-128+ is a clean sheet design for a wireless portable wire harness tester. Efforts include all phases of design and manufacturing. Key design features include icon driven user interface, custom operating system, and wireless network supporting up to eight testers.
Previous image
Next image
Previous image
Next image

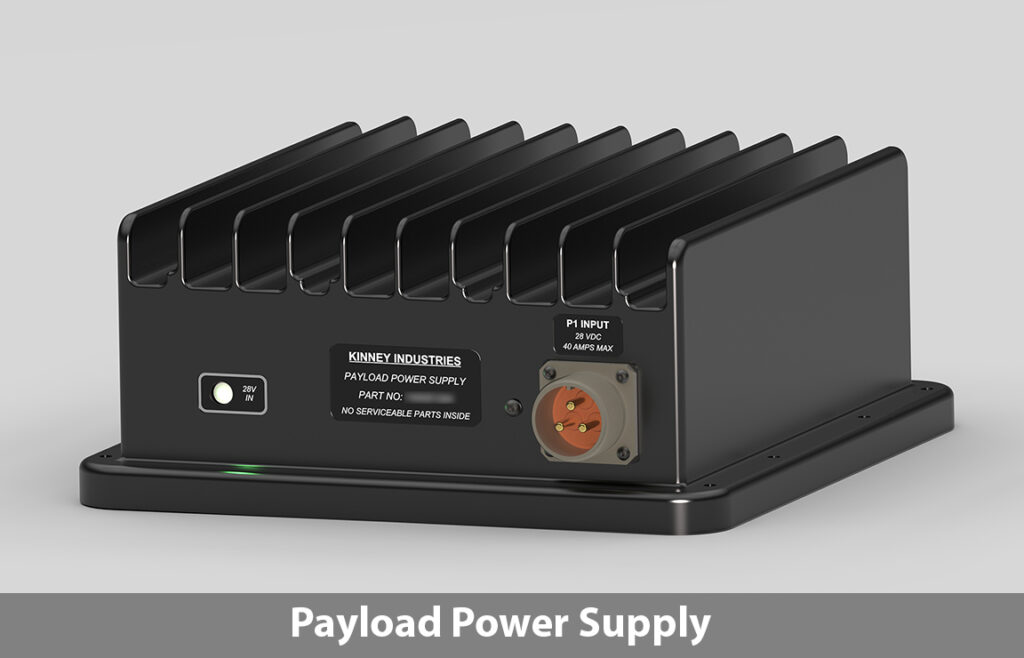

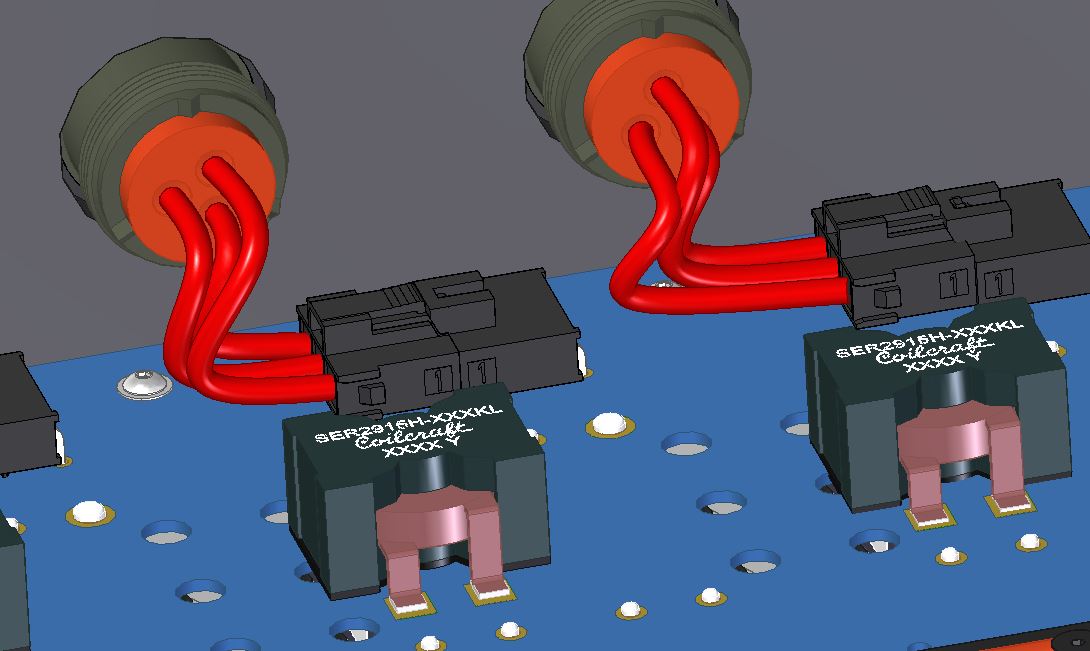

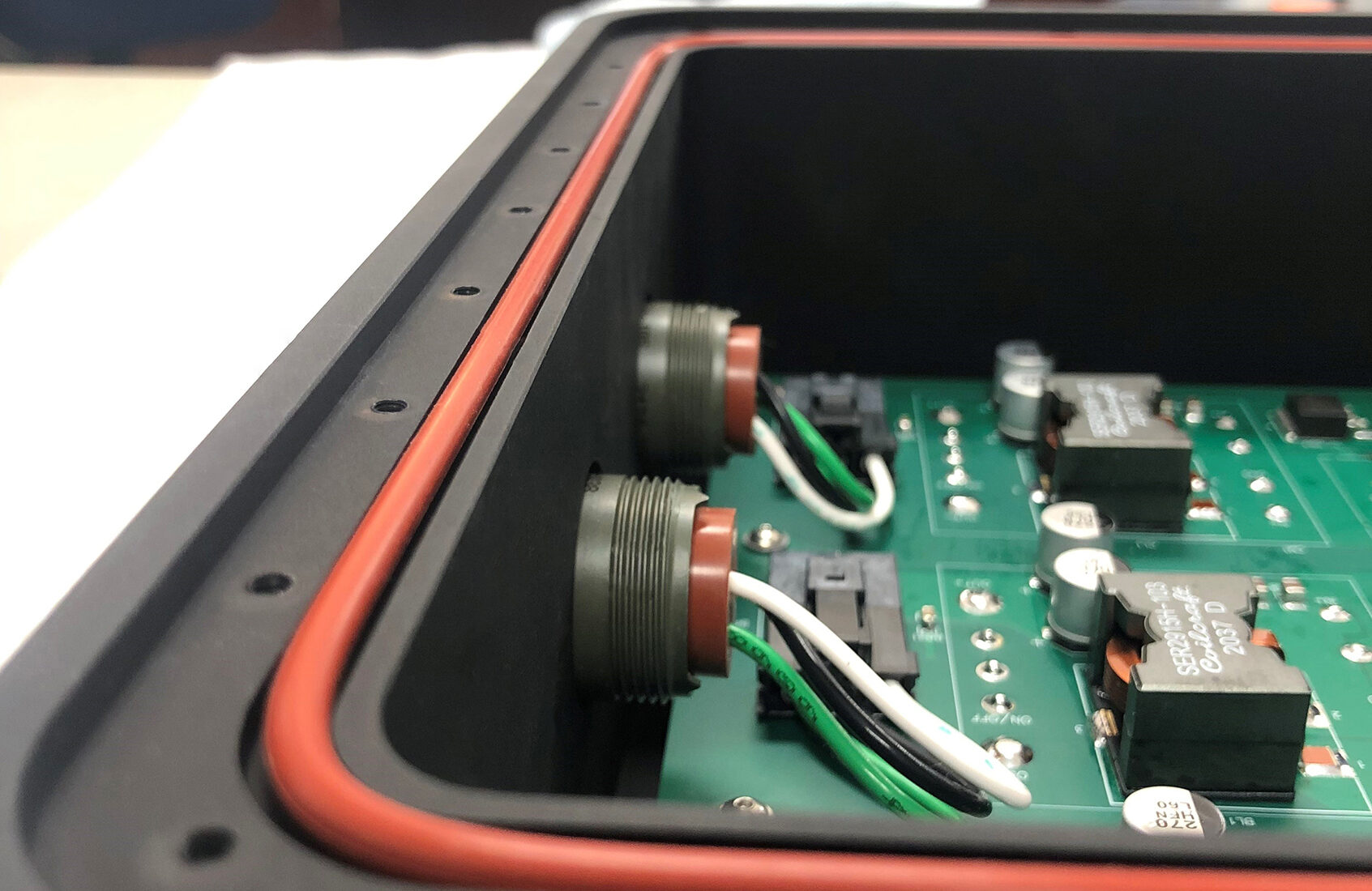

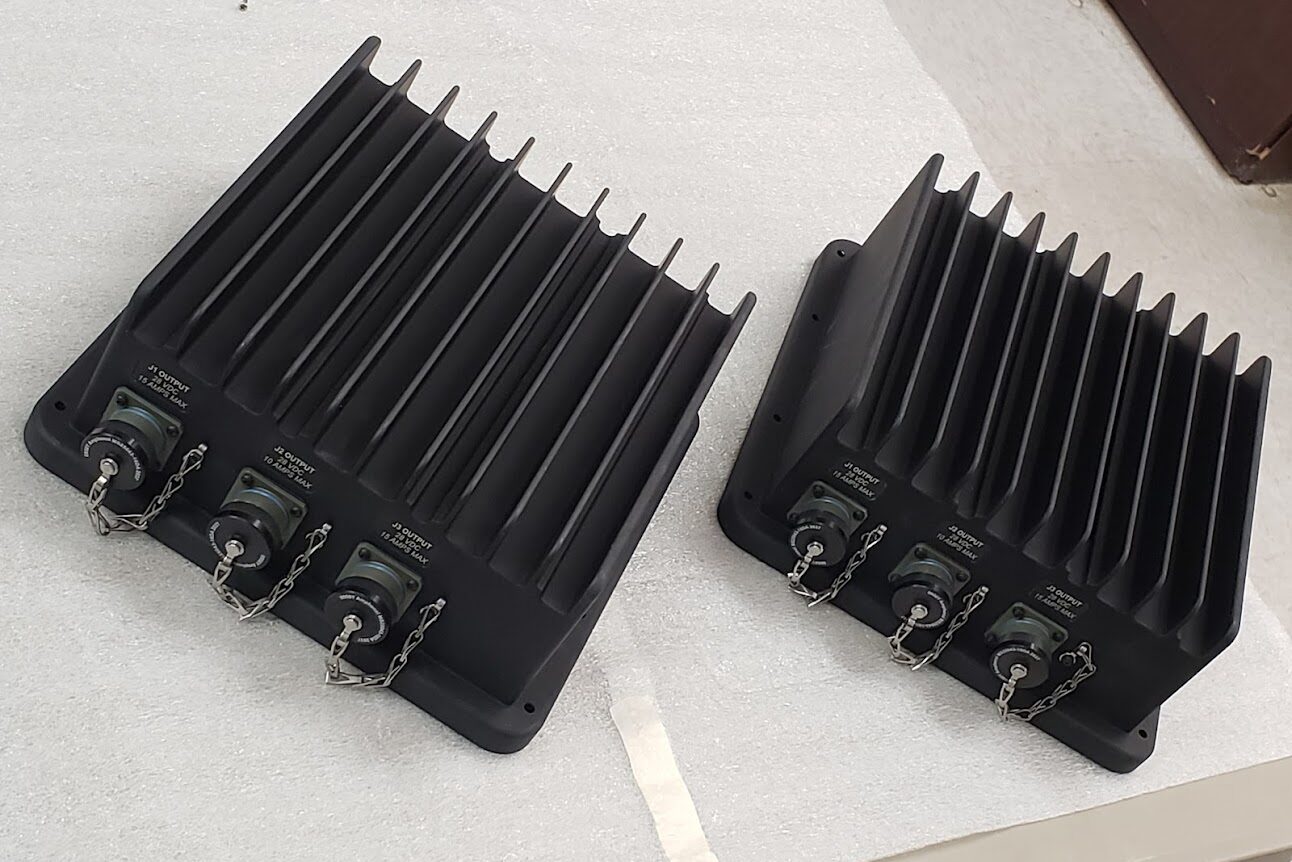

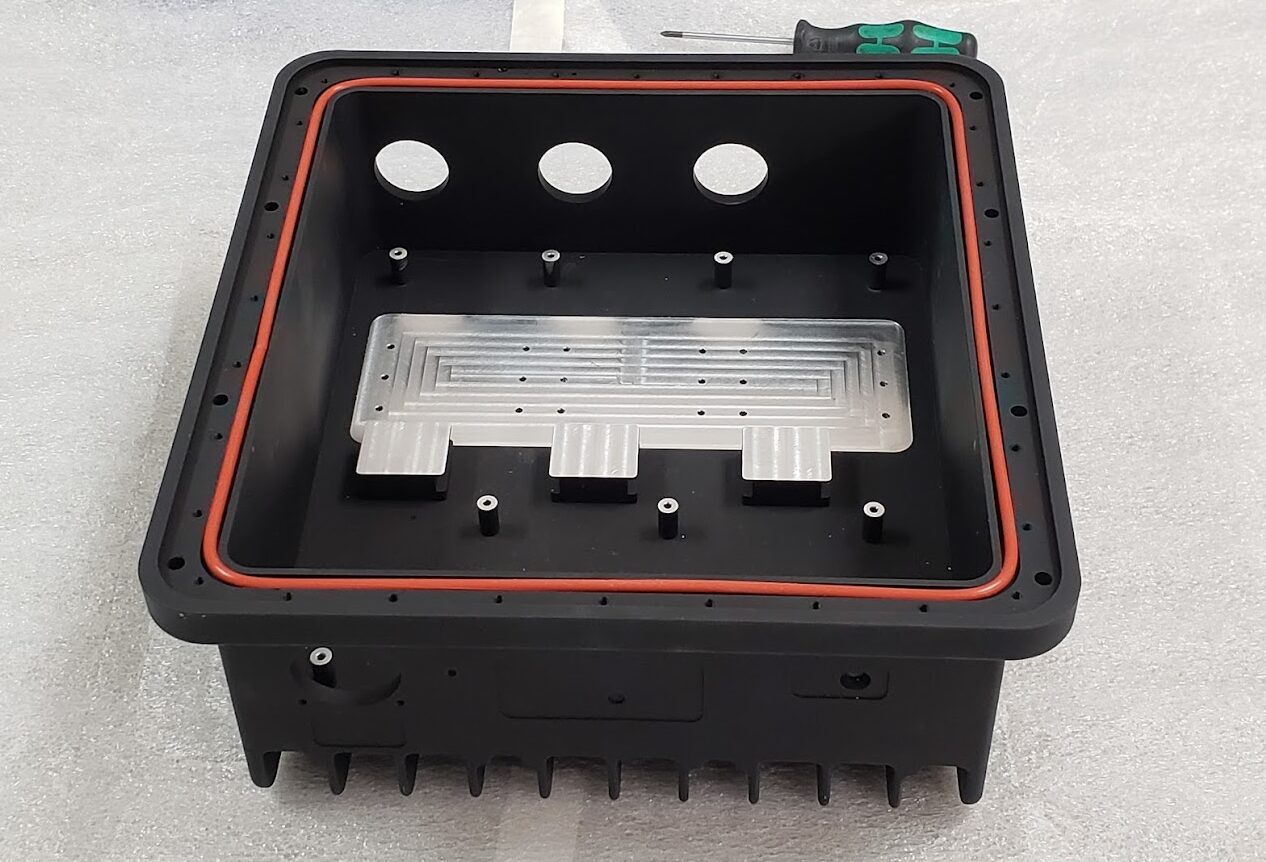

Payload Power Supply
Highlights
- Short Cycle Time from Concept to Production
- Ruggedized Packaging
- Integrated Thermal Management System
Custom, ruggedized, triple output DC/DC power supply. Effort included mechanical, electrical design, machining, and production implementation. Qualification testing included four corners performance testing.

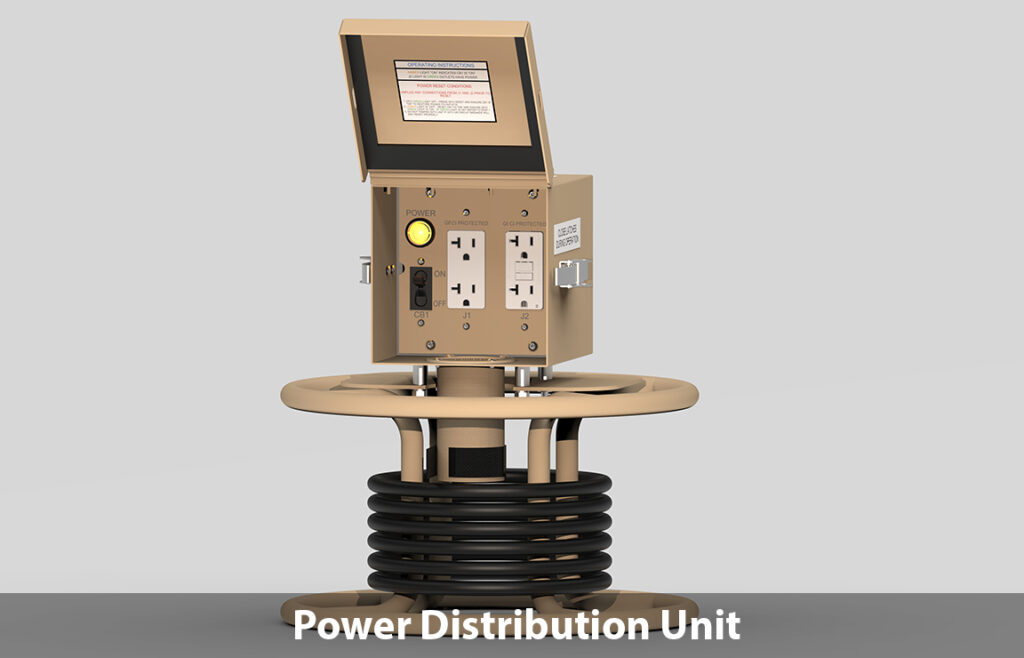

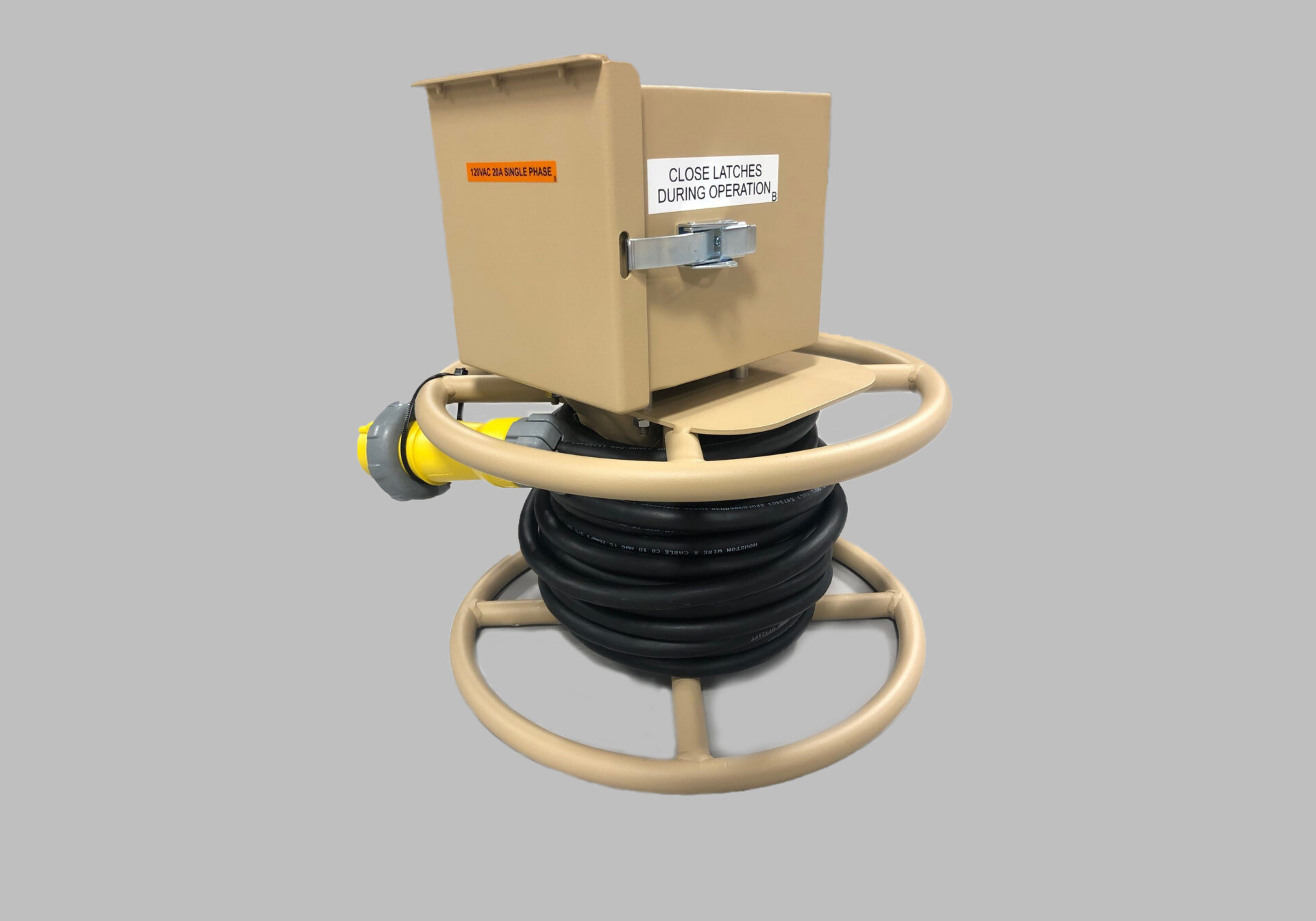

Power Distribution Unit
Highlights
- Cable Reel and Power Distribuition System in One
- Rigorous Safety Requirements
- Challenging Water Intrusion Requirements
- Wide Product Operation Envelope
Ground-up custom development included mechanical and electrical design to meet UL1640, NEMA 3R and other stringent environmental requirements.
Previous image
Next image
Previous image
Next image

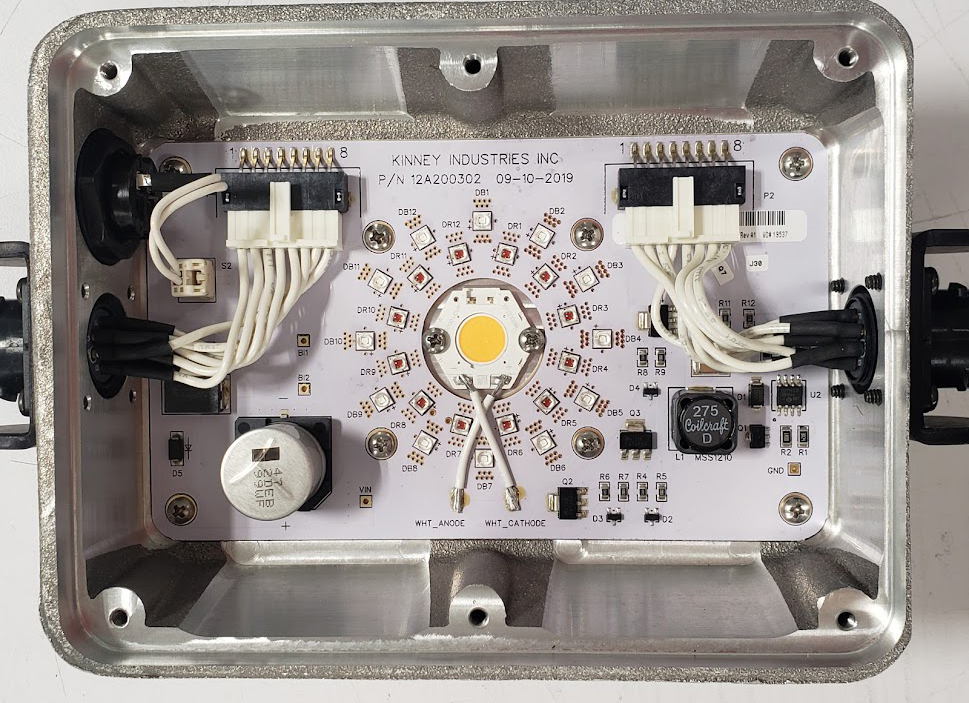

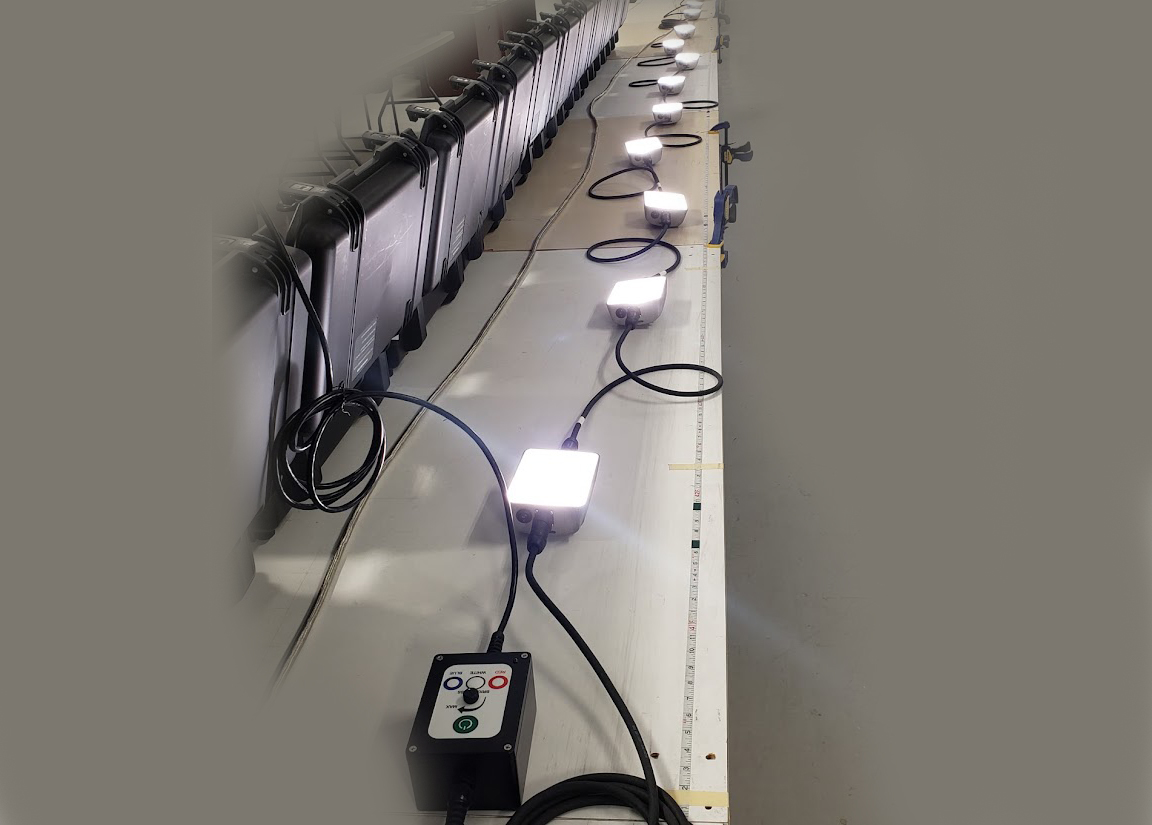

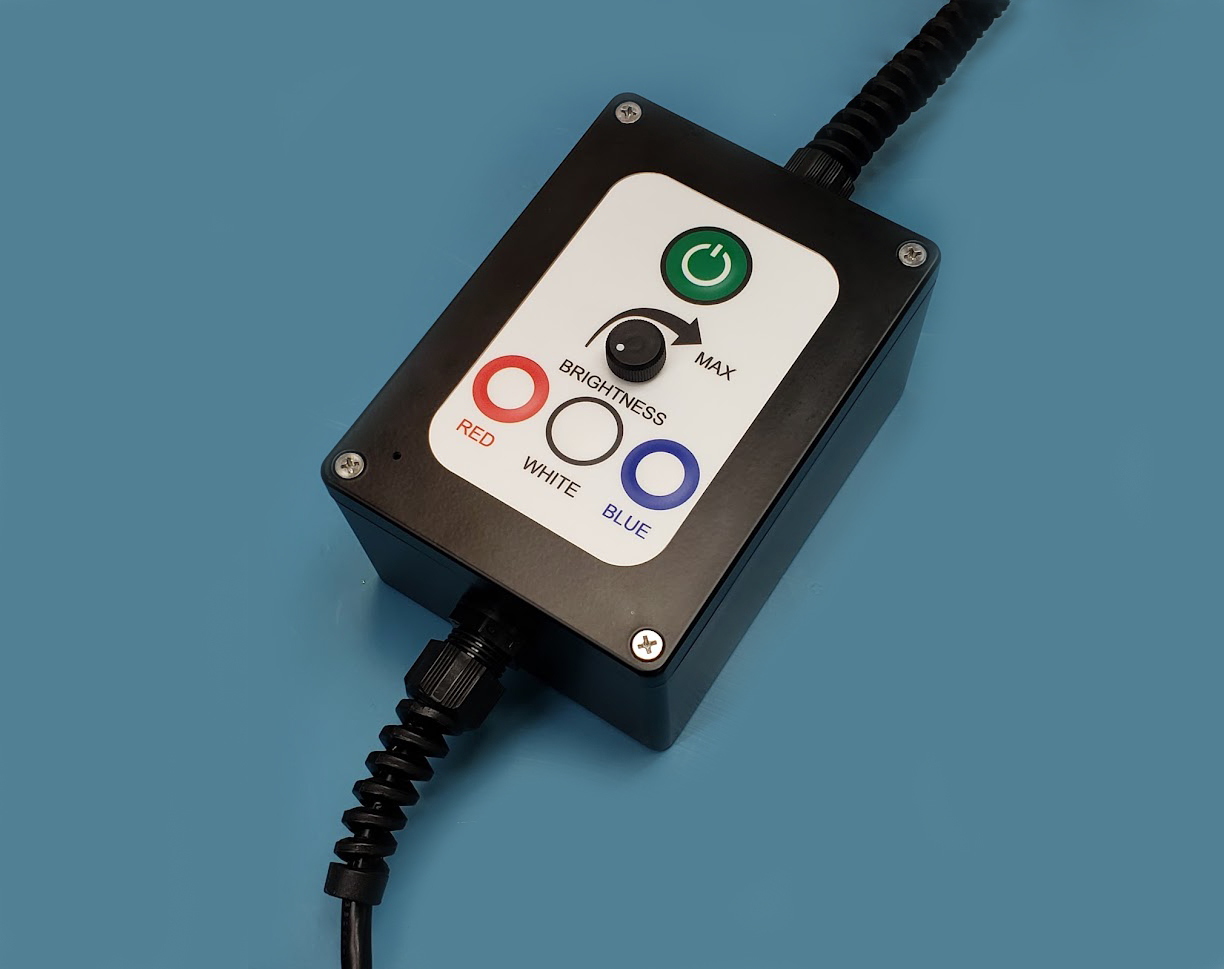

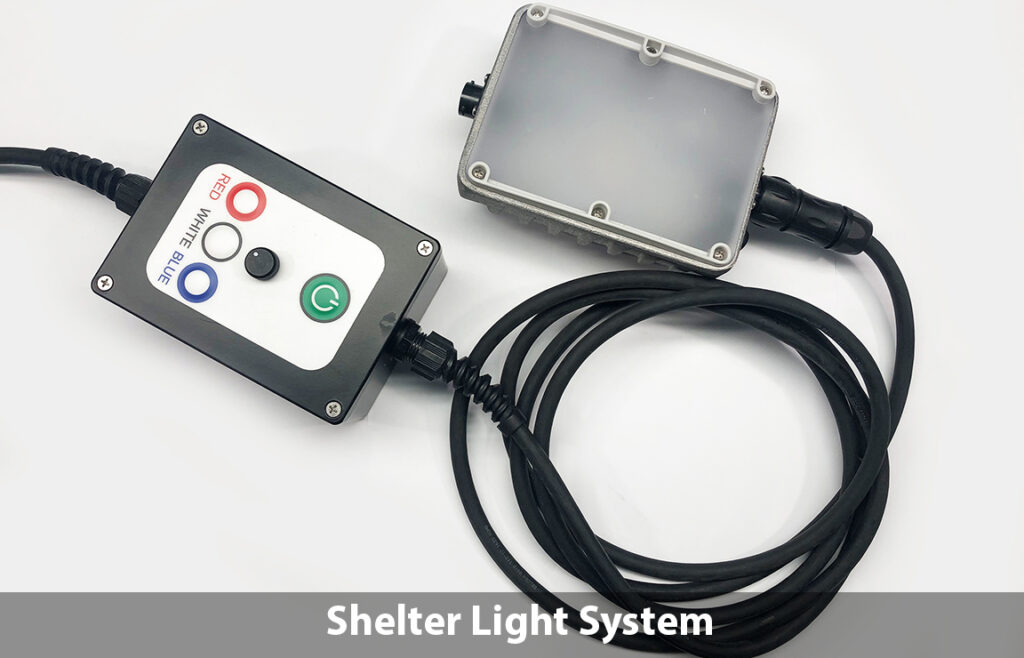

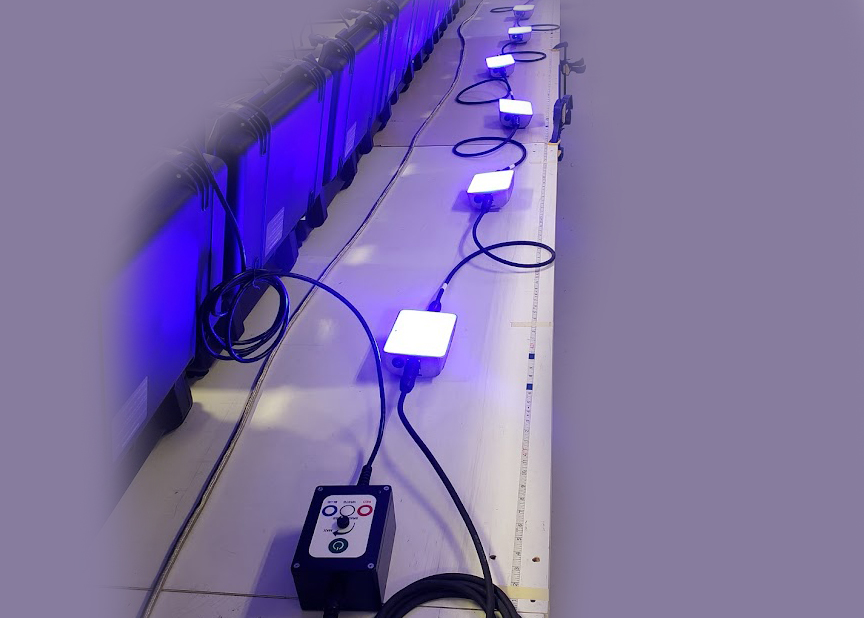

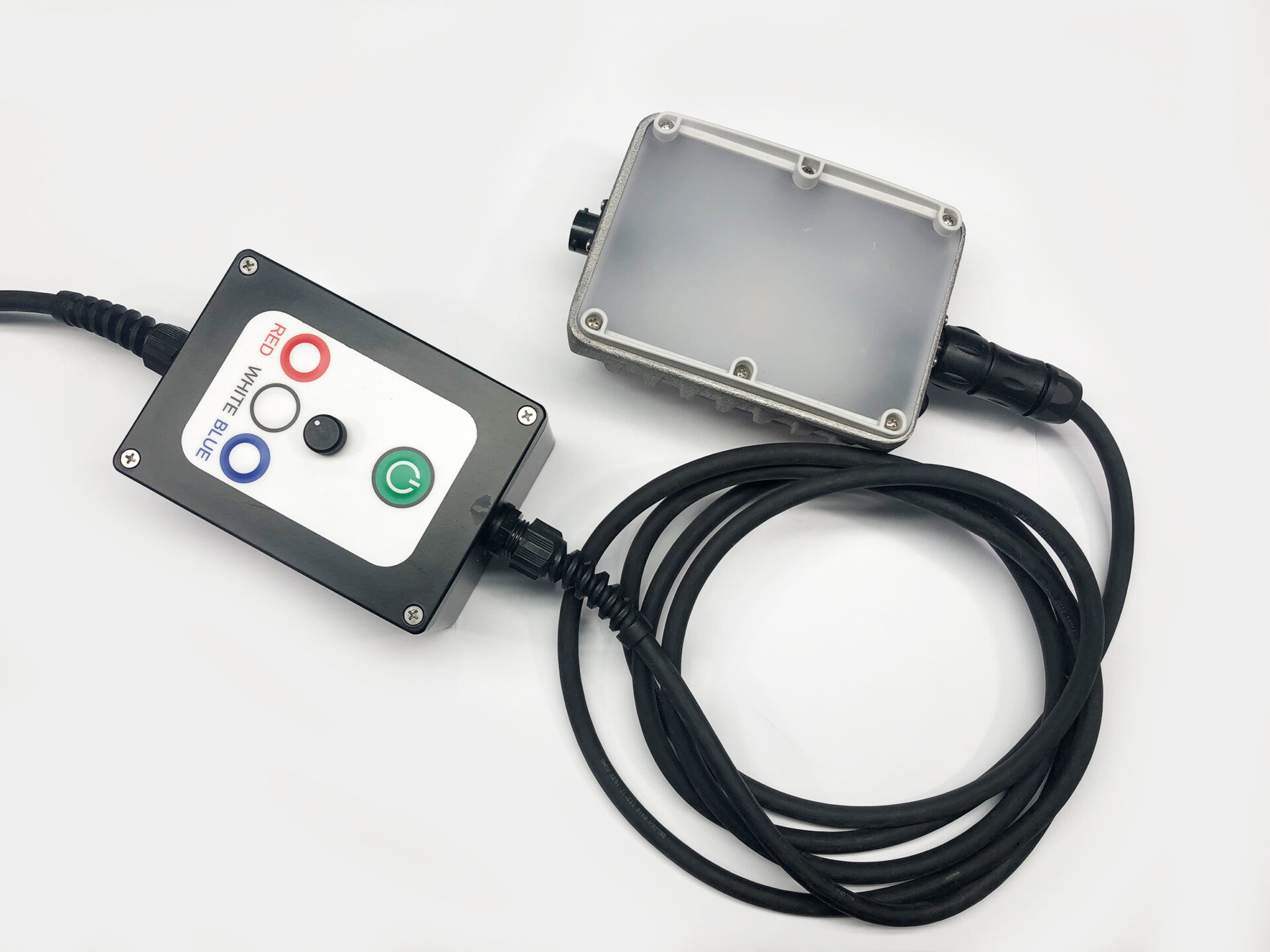

Shelter
Light System
Highlights
- Rugged
- Optimized Light Dispersion
- High Efficiency
- Compact Size
Clean sheet design for military shelter market included mechanical and electrical design for challenging environments. Effort included die-cast housing design and lights-out operation.
